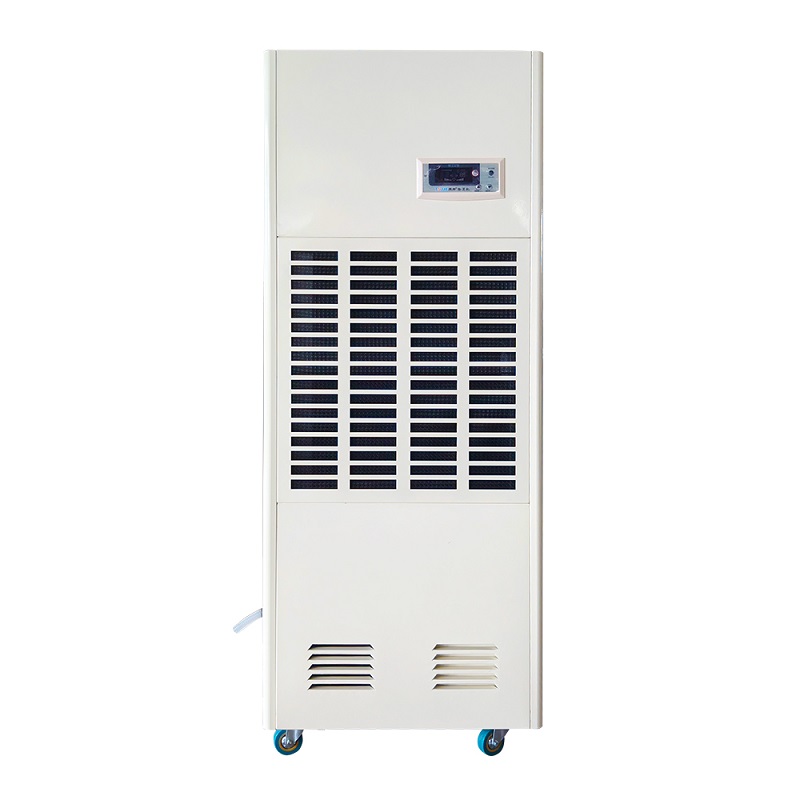

INDUSTRIAL DEHUMIDIFIER

DJ-7281E

  • Nominal dehumidification: 720L/day
  • Power supply: 380V/50Hz
  • Rated input power: 7.5KW
  • Rated input current: 11.5A

Features

  • Ambient temperature humidity display timely

  • World famous LG compressor with safety protection

  • Humidity control range 45%-95%RH,accuracy to ±3%

  • 3 minutes delay start protection

  • Eco-friendly refrigerant R410a

  • Timed on/off setting with memory function

  • Continously drainage by external soft tube

  • Sensor fault indication function

  • Support RS485 interface, multiple online control

  • Automatically defrosting

Why DJ-7281E

Fashionable design, large circulating air volume, LCD display showing temperature and humidity in real time, high dehumidification efficiency, suitable for factories, warehouses, swimming pools, greenhouses and other scenes, it is your ideal choice.

Model number DJ-7281E
Nominal dehumidification(30℃,RH80%) 720L/day
Power supply 380V/50Hz
Rated input power 7.5KW
Rated input current 11.5A
Circulating air flow 8000m³/h
Humidity control range 40%-95%
Drainage way Hose connection
Working temperature range 5~38°C
Refrigerant R407c/R410a
Noise ≤70db
Compressor type Rotary
Warranty 1 Year
Standard packaging Wooden case
Certification CE
Net weight/Gross weight 357kg/415kg
Machine size 1900x600x1860 mm
Package size 2020x660x2010 mm


Working Principle

The principle of the dehumidifier is-to discharge theair vapor-cooled self-condensing liquid through daocooling,reduce the air humidity,and achieve thedehumidification effect. The working principle is topass the compressor dao,two devices (evaporator,condenser),capillary tube,and The refrigerant in thecopper pipe changes from a high-temperature andhigh-pressure gas to a low-temperature and low-pressure liquid.The air inhaled into the machine has alarge temperature difference, which quickly condenseswater droplets and slides into the drain box throughthe two fins to reduce the air humidity and achievethe effect of dehumidifcation.

Installation

The dehumidifier should be installed in a place with air circulation, and avoid placing it in dead corners, causing short circuits in the air flow and failing to achieve the required dehumidification effect. At the same time, the dehumidifier should be placed on a firm and flat floor to avoid vibration and noise. Also, avoid direct sunlight or close to heating appliances.
